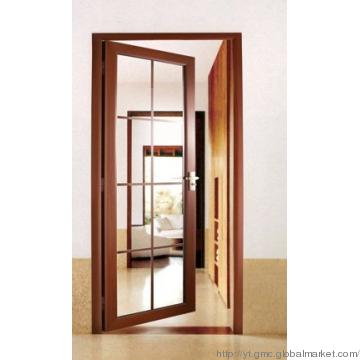

High quality Aluminum casement door
Key Specifications/Special Features:
1,Profile: aluminum alloy, 6063,6065,6060,6063A
2,Temper: T5, T6
3,Wall thickness: 1.2, 1.4 1.6, 2.0mm, can be customized
4,Surface treatment: Finish mill,Anodized,powder coated, Grinding, Blasting, Polishing ,electrophoresis, Wooden grain, color can be customized.
5, Glass system: Single glass-5,6,8mm (clear/ tempered glass)
Mid-hollow glass:(5mm+9a+5mm)/(6mm+6a+6mm) /(5mm+12a+5mm)
Laminated glass-5+ 0.38/0.76/1.52PVB+5mm
Coated glass/Art glass/Sing-glazing, double-glazing or triple-glazing/floated glass
6,Option: tempered/frosted/reflective/low-e/glass with geometric-bar/patterned glass
7,color: white, black walnut, beech, teak, sappily, red walnut, Red Nut-brown
Performance parameters:
1) Sound insulation: RW ≥28dB
2) Wind pressure resistance: third class (GB/T7106)
3) Air permeation resistance: third class (GB/T7108)
4) Water resistance: third class (GB/T7108)
5)U-Value <1.1-2.2
